The Sennheiser XSW-D PORTABLE LAVALIER SET is an easy entry point into the world of wireless microphone audio for vloggers, video shooters, and mobile journalists looking for a camera-mount system that's cost-effective, as well as quick and simple to use. It puts world-renowned Sennheiser sound quality in a plug-and-record, 1-button digital system that anyone can operate. Plug it in, power it up, and you're immediately up and running, instantly lightening your workload so you can concentrate on creating.

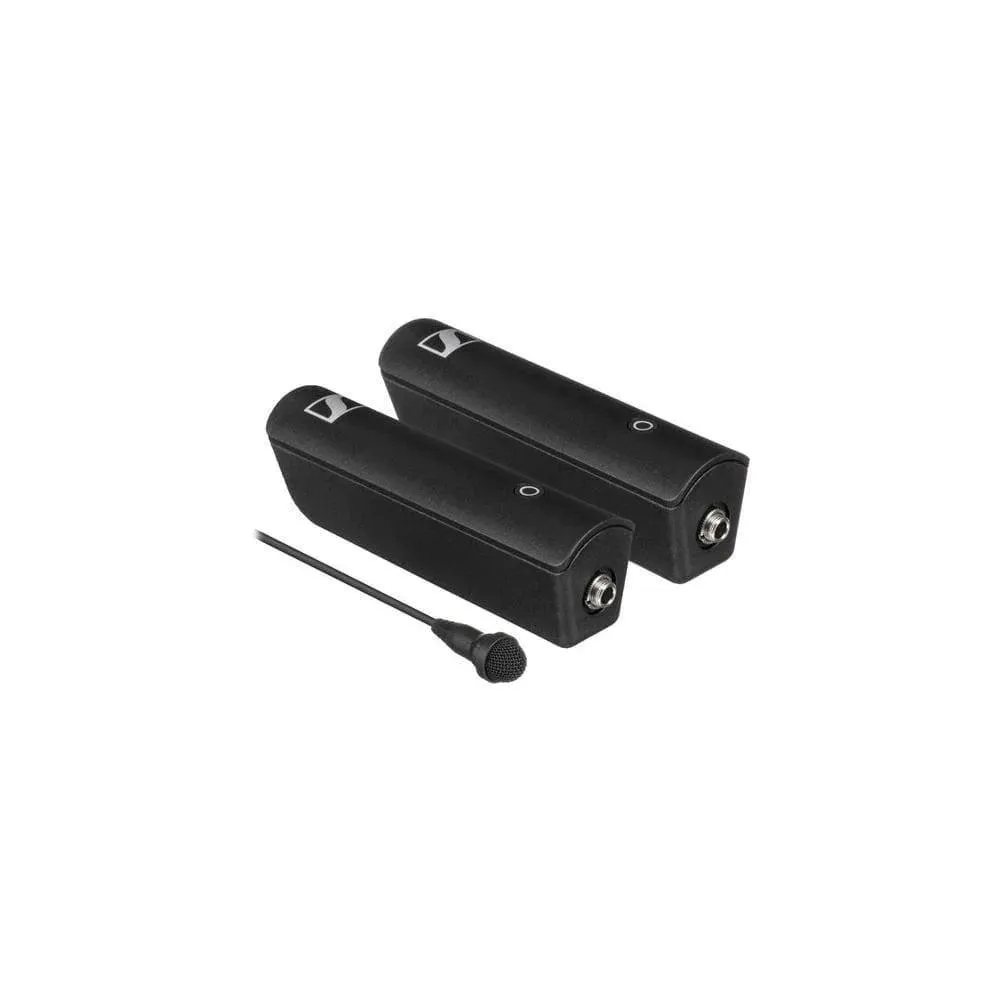

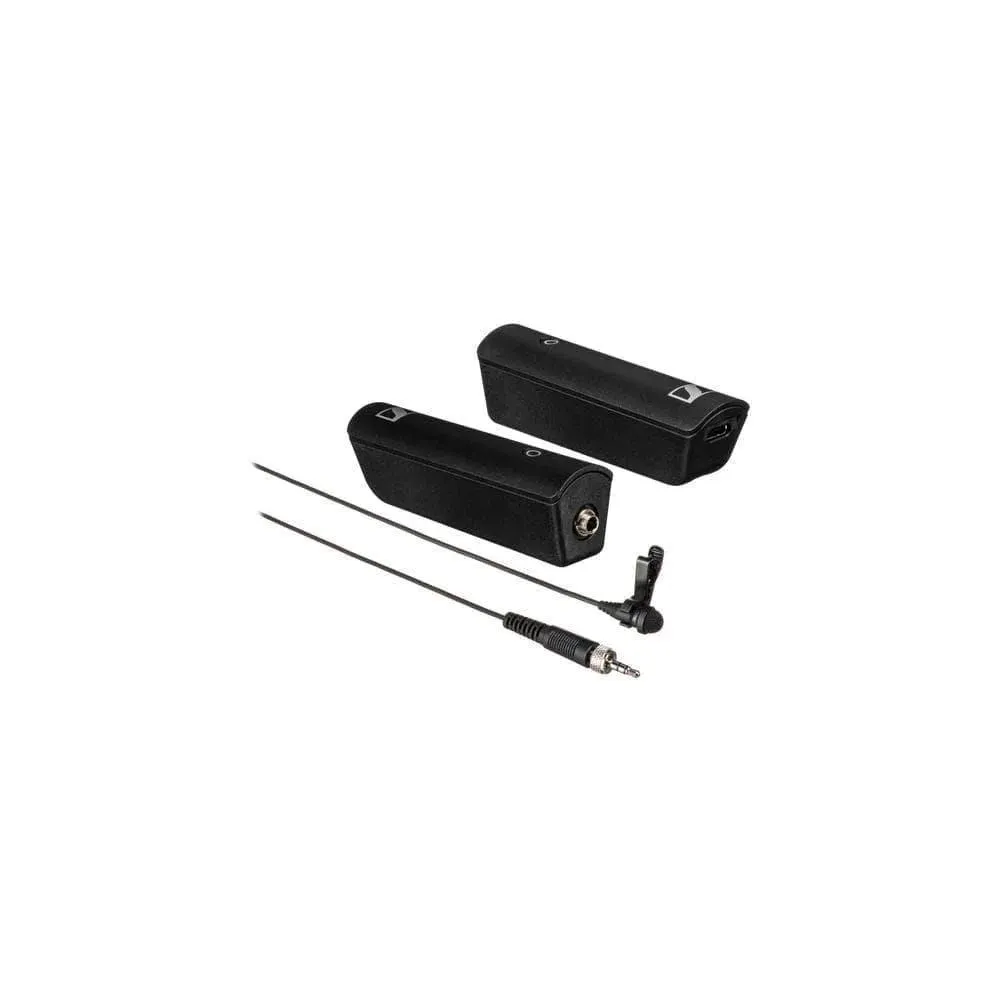

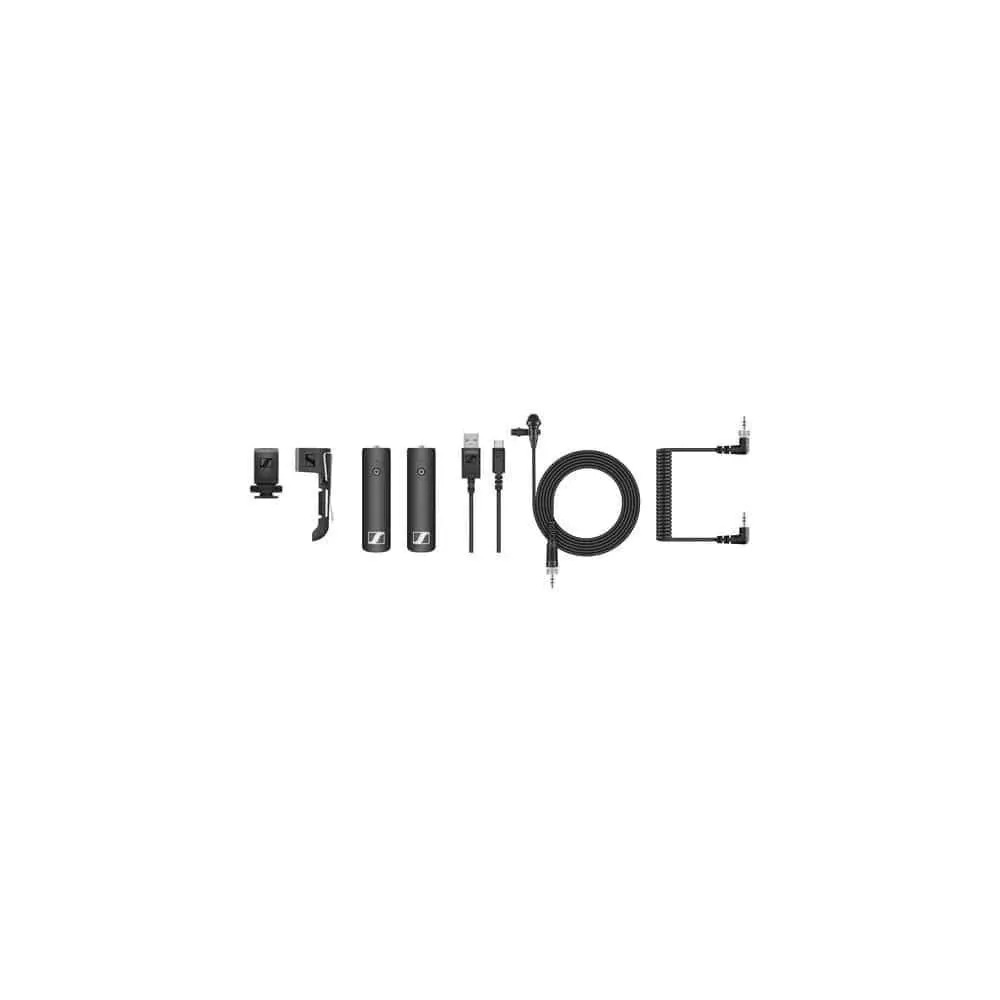

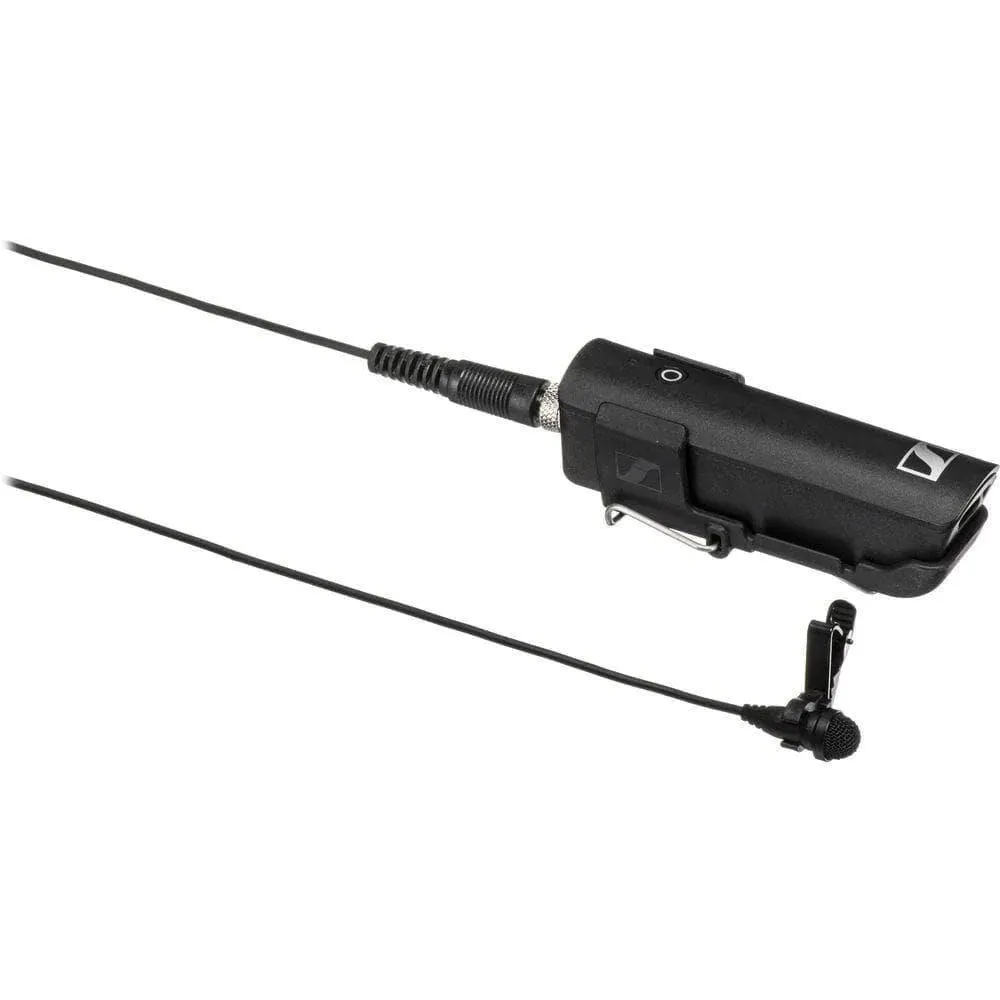

The set offers the highly popular ME 2-II omnidirectional lavalier microphone along with a bodypack transmitter and a camera-mount receiver, both featuring lightweight, miniature housings. The system connects to a DSLR, camcorder, or a tablet/smartphone (with additional adapter) to capture crisp-sounding interviews or dialog for video shoots.
Features
- Plug & Record Set for Vlogger
- ME 2-II Omnidirectional Lav Mic
- Miniature Bodypack Transmitter
- Miniature Camera-Mount Receiver
Tech Specs
| Wireless Transmission Digital 2.4 GHz |
| Included Transmitters 1 x Bodypack |
| Diversity TDMA |
| RF Frequency Band 2400 to 2483.5 MHz |
| Max Operating Range 250' / 76.2 m (Line of Sight) |
| Max Systems per Setup 5 |
| Audio Codec APT-X Live |
| Latency |
| Encryption None |
| Modulation GFSK |

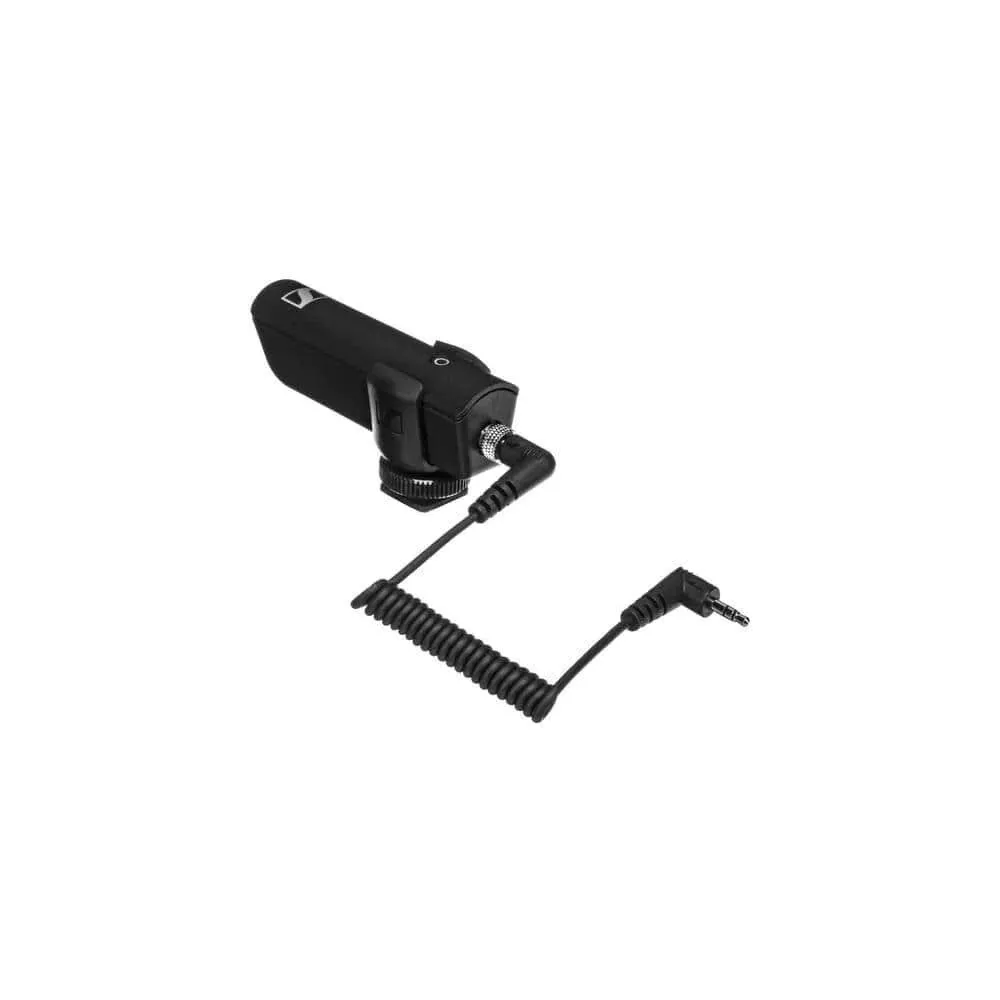

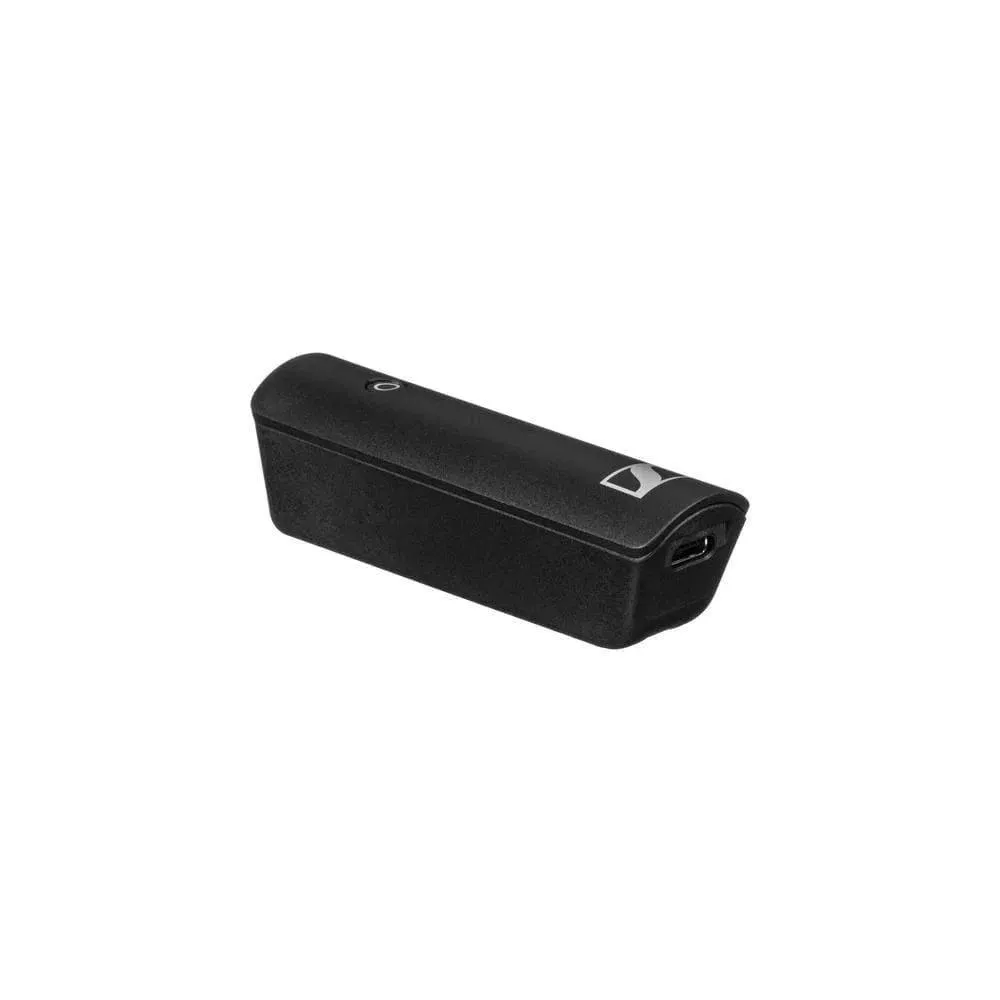

| Receiver |
| Form Factor Camera-Mount |

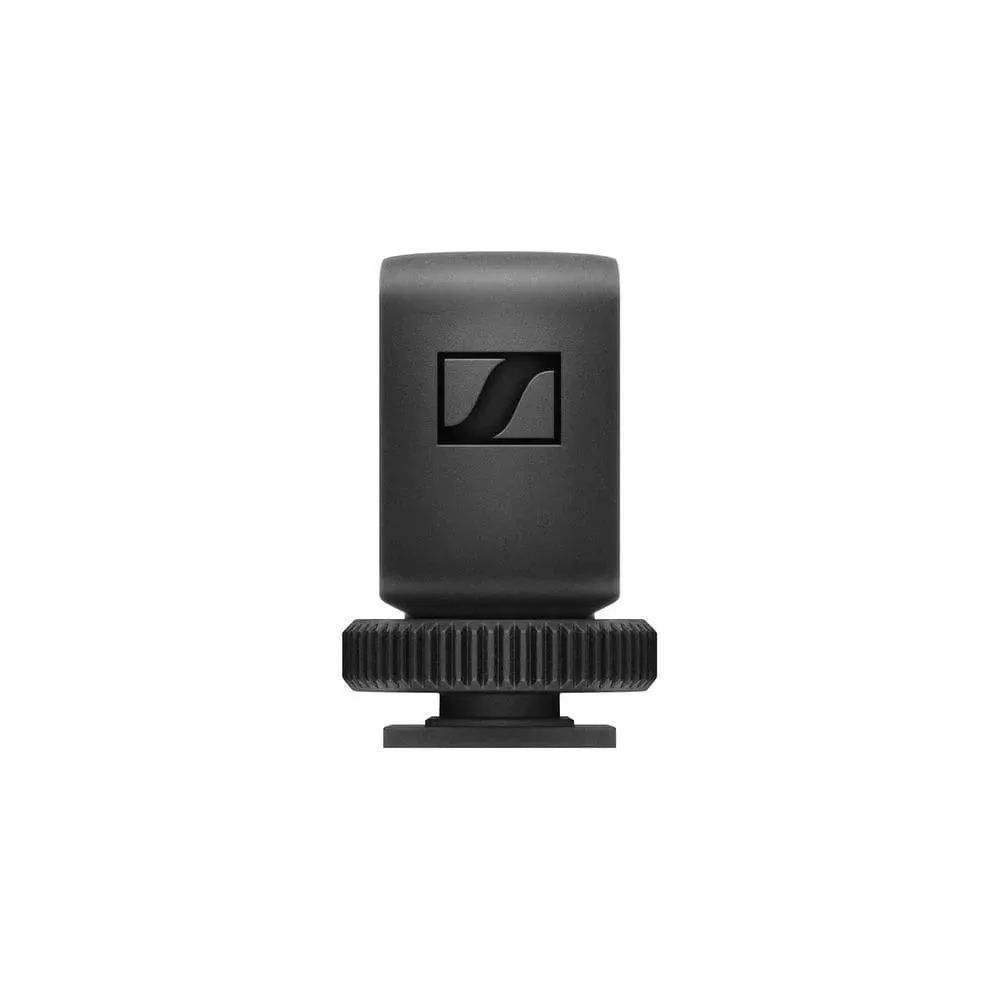

| Mounting Options Shoe-Mount (with Included Hardware) |
| Antenna 1 x Internal |
| Number of Audio Channels 1 |
| Audio I/O 1 x 1/8" / 3.5 mm TRS Female Unbalanced Output |
| Audio Output Level 12 dB (Consumer Level) |
| Frequency Response 80 Hz to 18 kHz |

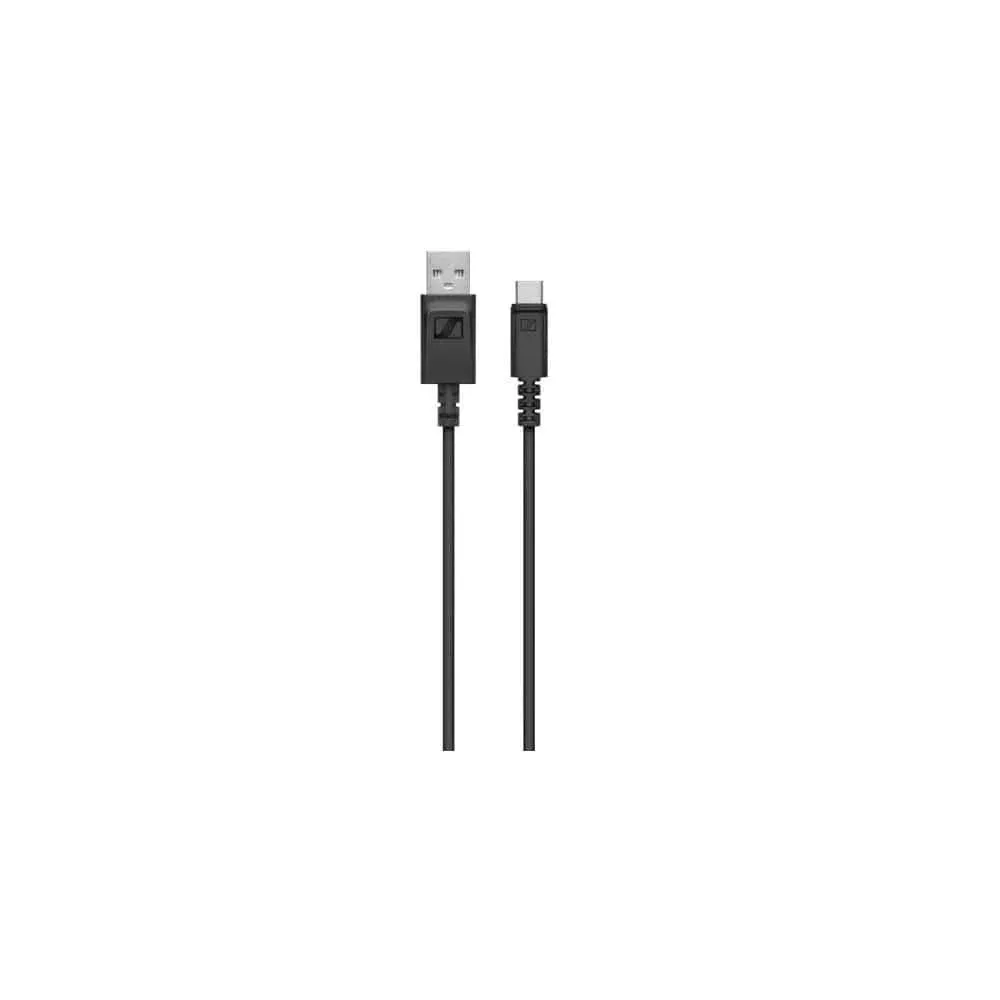

| USB/Lightning Connectivity 1 x USB Type-C (Bus Power, Charging) |
| Power Requirements Battery, Bus Power (USB) |
| Battery Type 1 x Built-In Rechargeable (Included, Not Replaceable) |
| Internal Battery Capacity 850 mAh |
| Battery Charging Time 3 Hours |
| Approx. Battery Life 5 Hours (Lithium Rechargeable) |
| Battery Cycle Count Up to 1000 Cycles |
| Display & Indicators 1 x LED (Battery Status, Mute, RF Level) |
| Housing Plastic |
| Operating Temperature 14 to 131°F / -10 to 55°C |
| Operating Humidity 95% |
| Dimensions 1.1 x 3.4 x 0.9" / 28 x 86 x 24 mm |

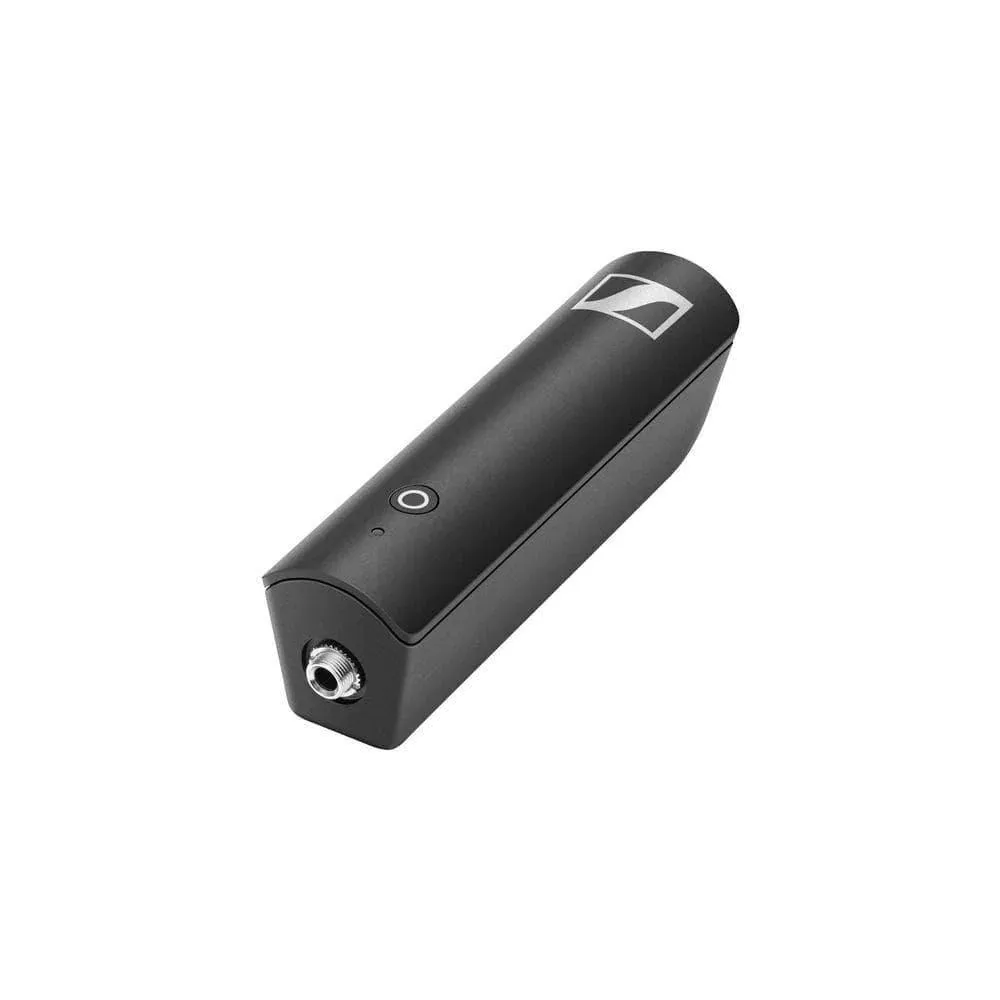

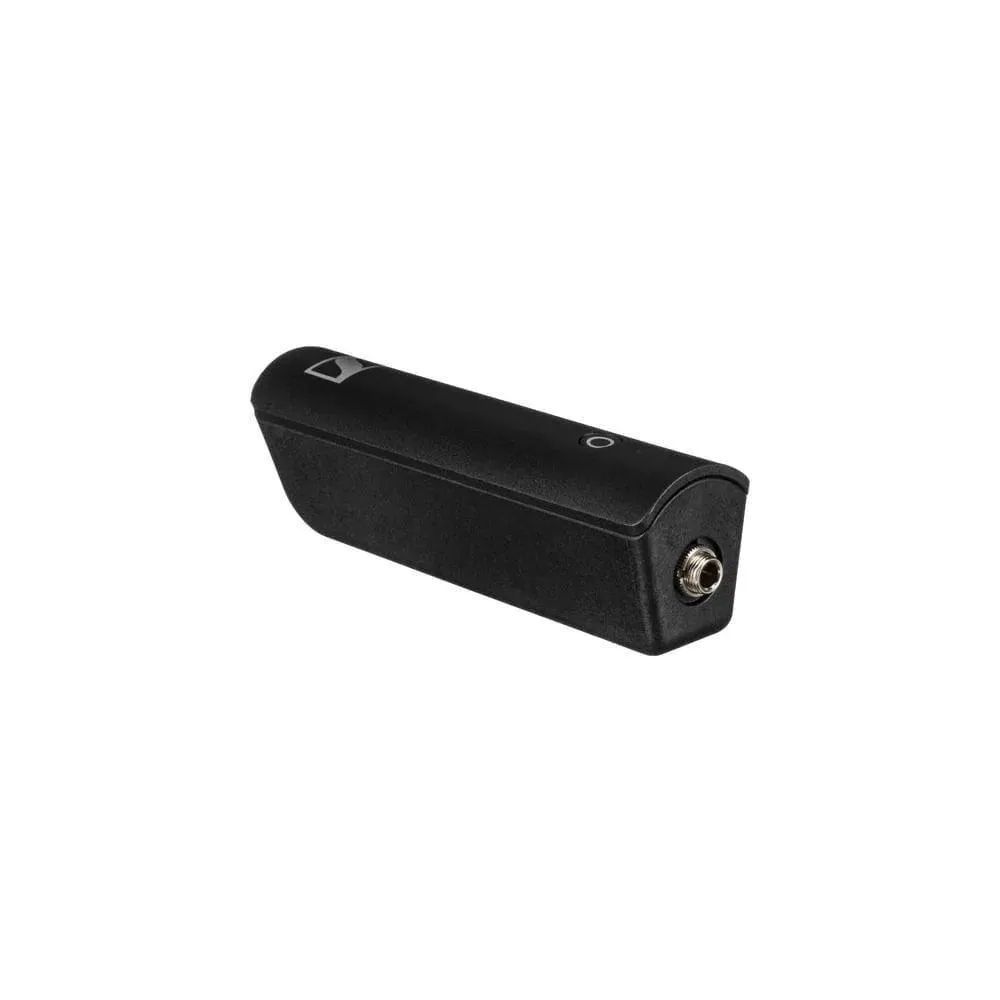

| Transmitter |
| Form Factor Bodypack |
| RF Output Power 10 mW |
| Audio I/O 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable) |
| Muting Off/On Switch |
| Audio Input Level (Mic Level) |
| Frequency Response 80 Hz to 18 kHz |
| Antenna 1 x Internal |
| Power Requirements Battery, Bus Power (USB) |
| Battery Type 1 x Built-In Rechargeable (Included, Not Replaceable) |
| Internal Battery Capacity 850 mAh |
| Battery Charging Time 3 Hours |
| Approx. Battery Life 5 Hours (Lithium Rechargeable) |
| Battery Cycle Count Up to 1000 Cycles |
| USB/Lightning Connectivity 1 x USB Type-C (Bus Power, Charging) |
| Display & Indicators 1 x LED (Battery Status, Mute, Signal Strength) |
| Housing Plastic |
| Operating Temperature 14 to 131°F / -10 to 55°C |
| Operating Humidity 95% |
| Dimensions 1.1 x 3.4 x 0.9" / 28 x 86 x 24 mm |

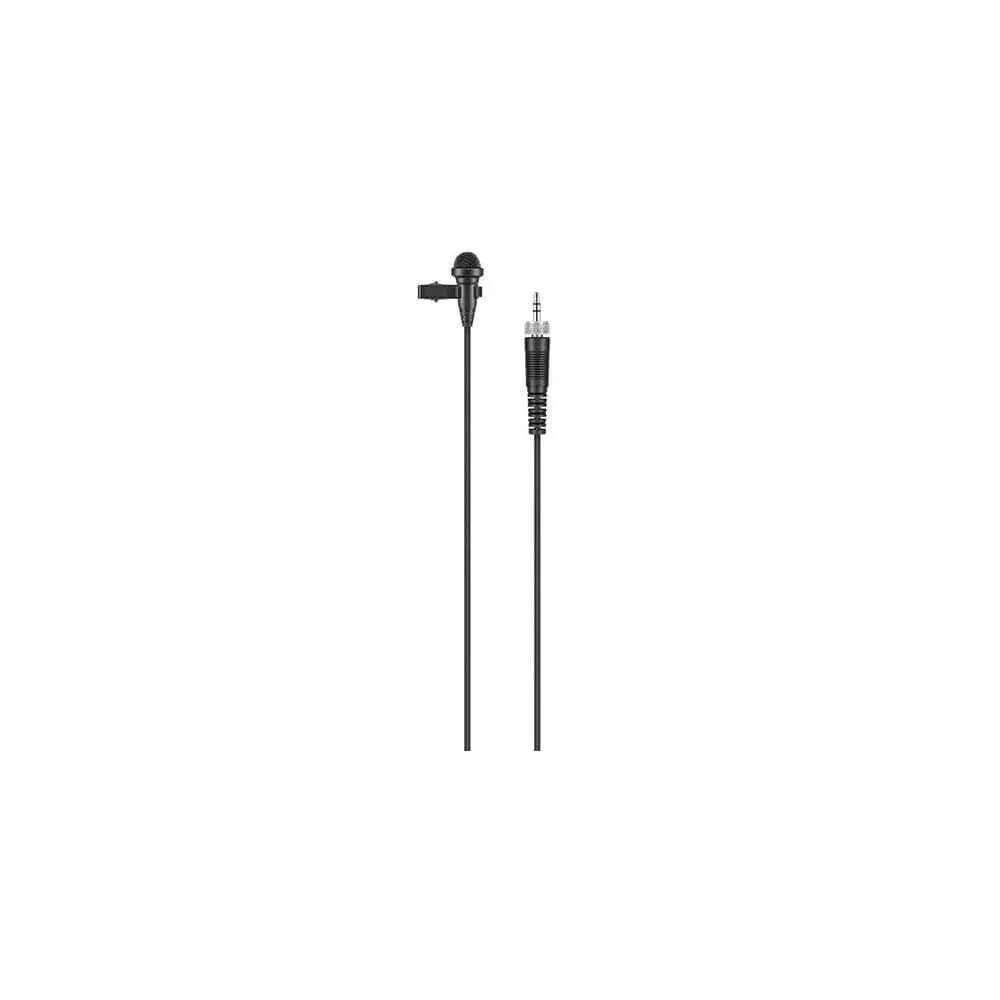

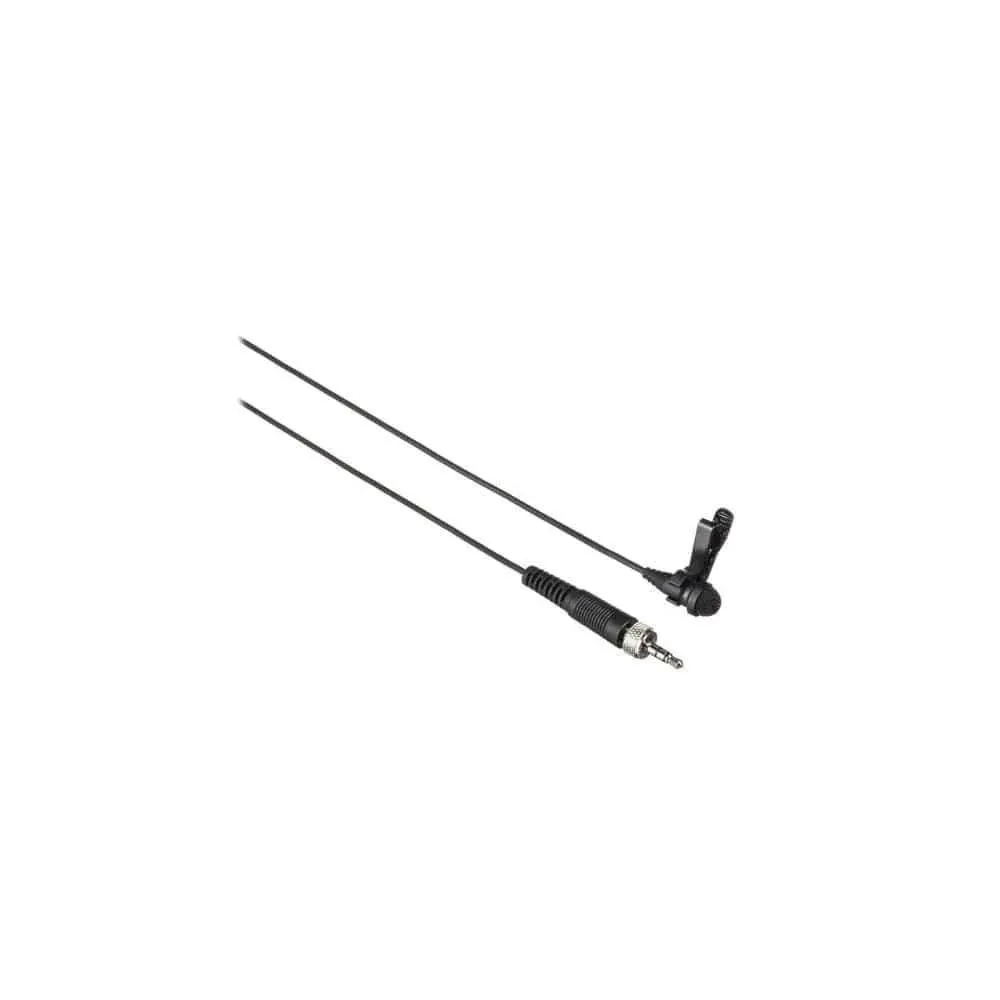

| Microphone |
| Form Factor Lavalier |
| Sound Field Mono |
| Capsule Electret Condenser |
| Polar Pattern Omnidirectional |
| Frequency Range 50 Hz to 18 kHz |
| Equivalent Noise Level 36 dB |
| Maximum SPL 130 dB SPL Peak |
| Sensitivity 20 mV/Pa |
| Output Connectors 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable) |
| Cable Length 5.25' / 1.6 m |
| Operating Voltage 7.5 V |
| Packaging Info |
| Package Weight 0.8 lb |
| Box Dimensions (LxWxH) 9.5 x 4.55 x 2.95" |
