Identify, inspect, and locate targets through dark and turbid underwater environments, with unparalleled image quality in a compact, rugged form factor.

Redefining Multi-beam Imaging

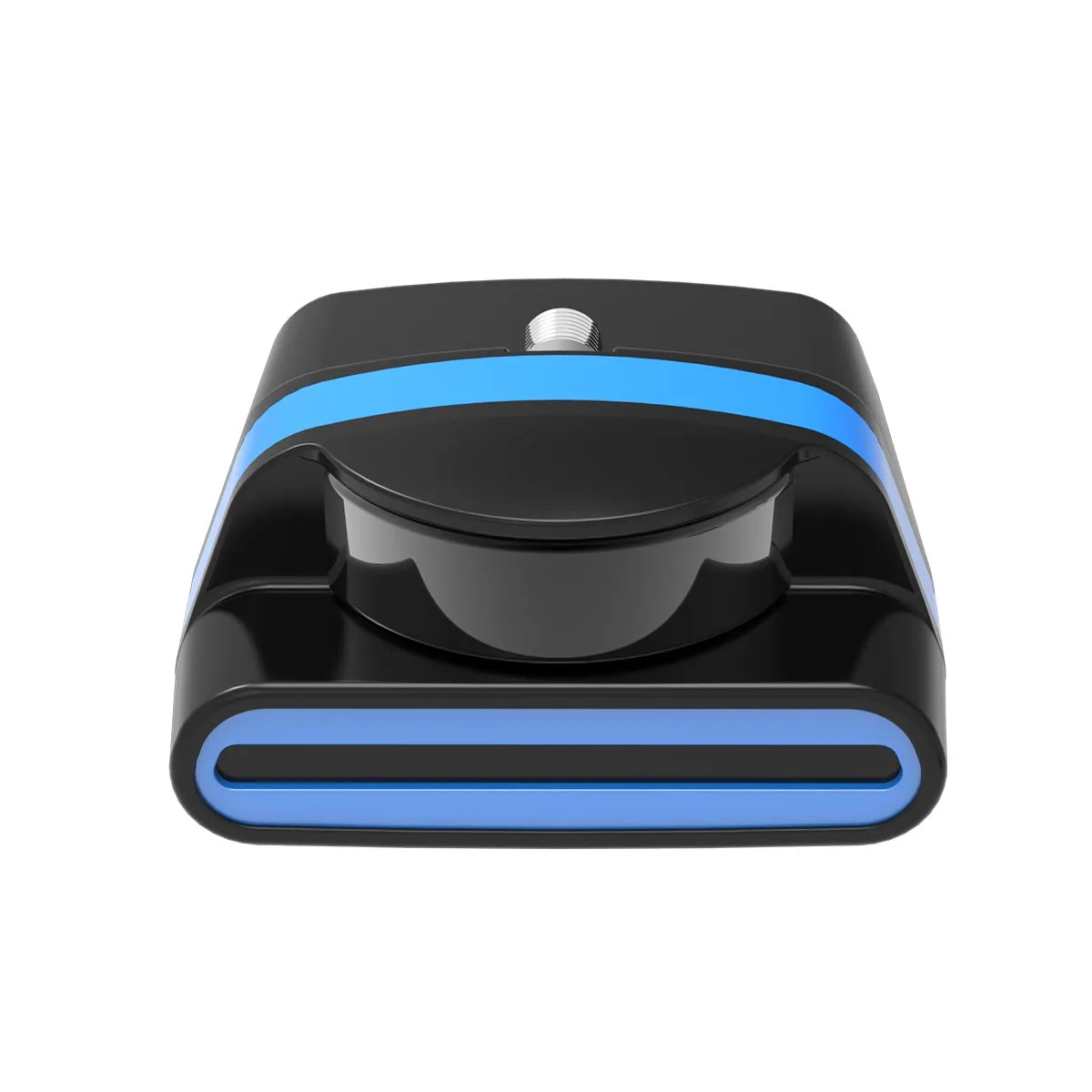

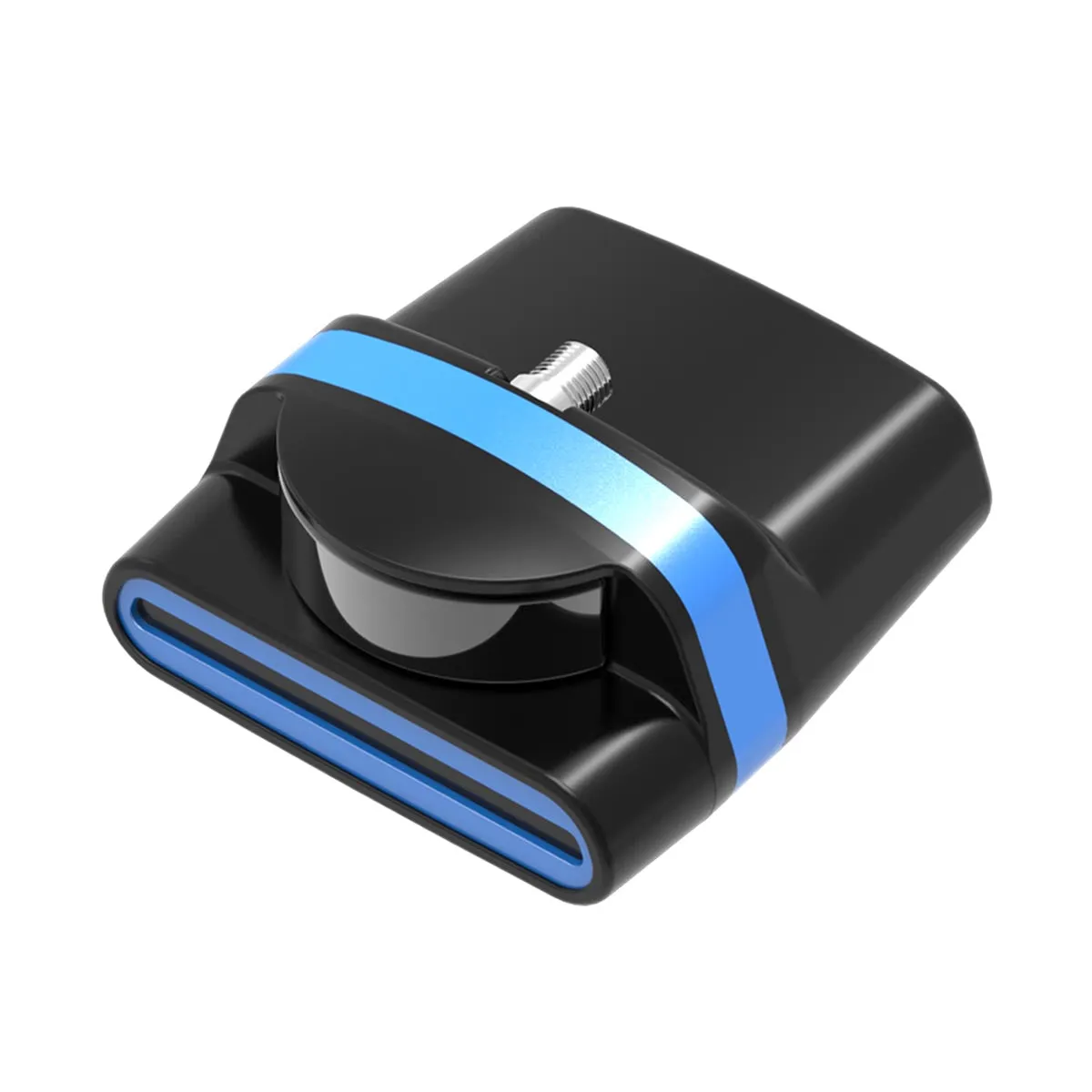

The Imaging Sonar offers single and dual-frequency models, unparalleled image quality in a compact, rugged form factor, and depth rated to 300m, with ultra-fast update rates of up to 40Hz and Wide 130°horizontal and 20° vertical apertures.

Compact & Robust

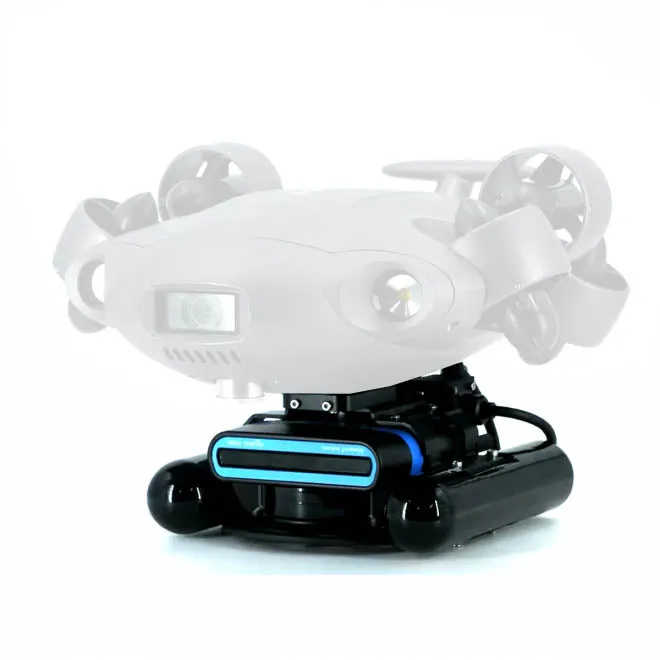

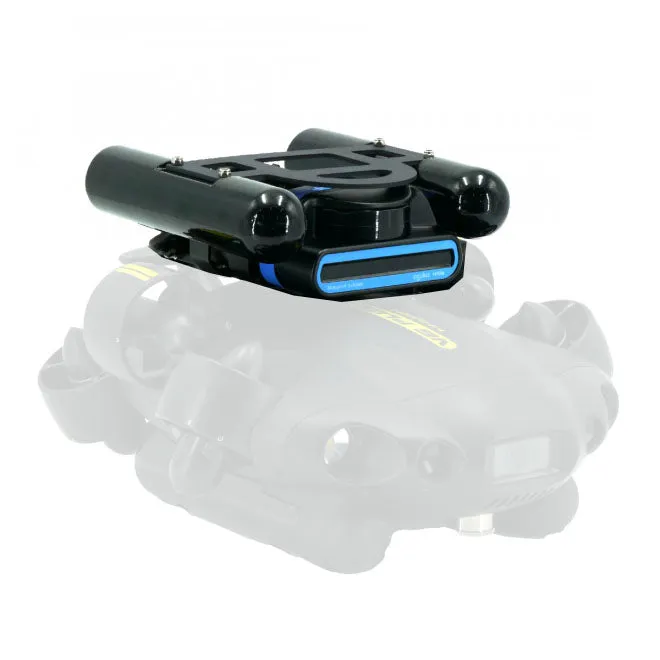

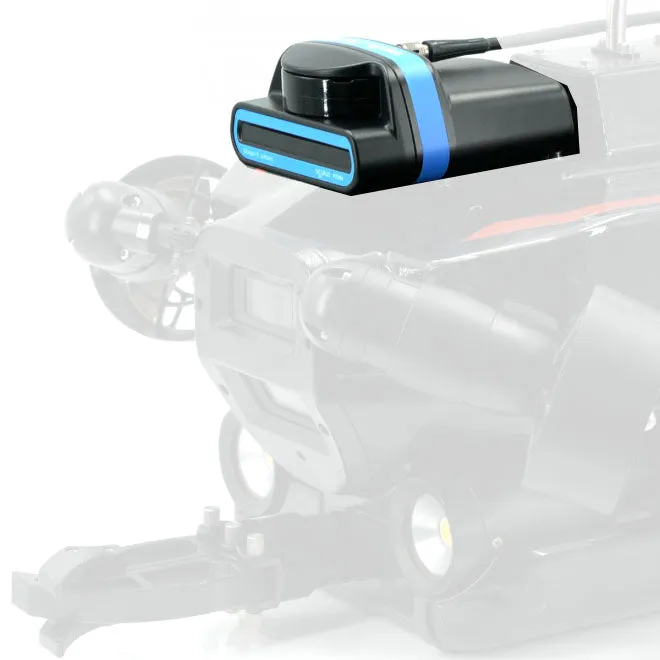

Designed for use on the FIFISH’s small and midsized inspection-class ROVs, the Imaging Sonar delivers operating ranges of up to 120m to suit every underwater challenge.

See Through Turbid Conditions

With a compact design for easy integration, operators can experience improved navigation and inspection capabilities in turbid underwater conditions.



A Total & Integrated Solution

Integrated with the FIFISH APP, the imaging sonar is an optimal solution to reidentify the target since, produces an exact location and visual verification that is suitable for SAR (search and rescue), ship hull inspections, offshore operations, and many other marine industrial applications.

Specifications

ITEM	SPEC.
Frequency	750KHz / 1.2MHz
Range (Max)	120m / 40m
Range (Min)	0.1m
Update Rate	40Hz
Horizontal Aperture	130° / 80°
Vertical Aperture	20° / 12°
Aperture resolution	1°/0.6°
Number of Beams	512
Operating temperature	-5℃~35℃
Depth Rating	300m



This add-on tool is compatible with the following FIFISH Underwater Robots:

• – FIFISH V6 EXPERT

------------------------

• – FIFISH PRO V6 PLUS
• – FIFISH PRO W6
