Highlights

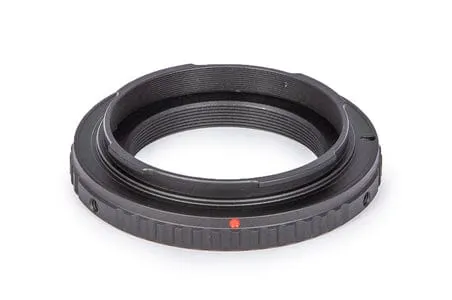

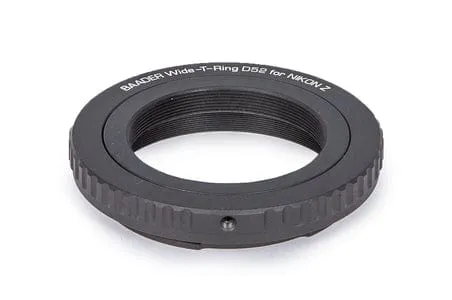

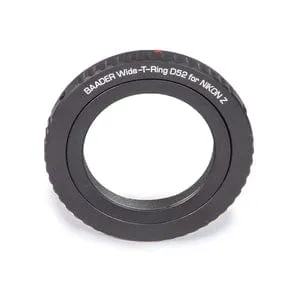

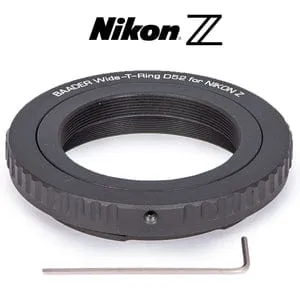

- Baader Wide-T-Ring Nikon Z to connect Nikon Z cameras on the Astro T-2 system and the S52 dovetail

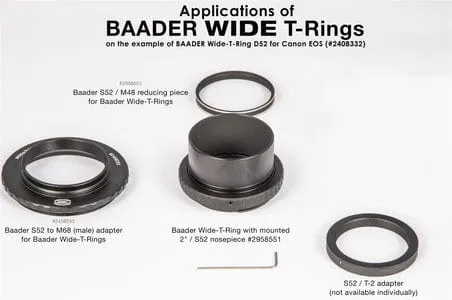

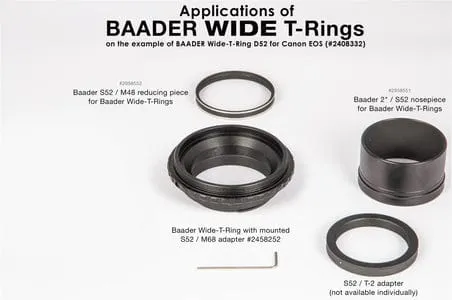

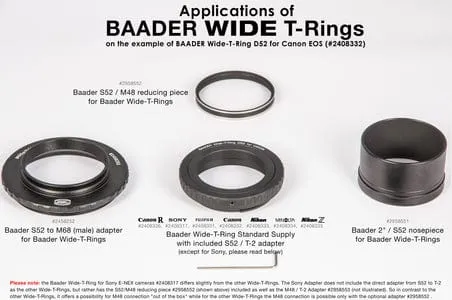

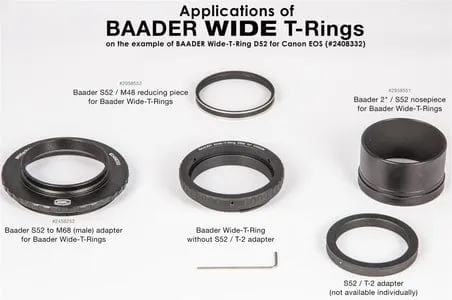

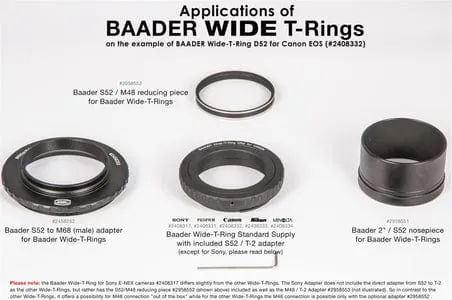

- All Baader Wide-T-rings have an S52 dovetail in addition to the inserted T-2 ring. This allows the T-ring to be modified to an M48 female thread using the , or to use the without the T-2 reduction. With the , the Wide-T-Ring can be directly attached to an M68 male thread to securely fasten your camera to the widest possible aperture.

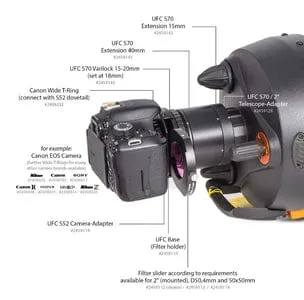

- All Baader Wide T-rings can be directly adapted to an UFC (Universal Filter Changer) with the optional (#2459119), in order to change different filter sizes directly in front of the camera sensor.
- Furthermore, the illumination of the camera chips improved significantly, mainly because of the larger clear aperture.
- On the camera side: Nikon Z bayonet

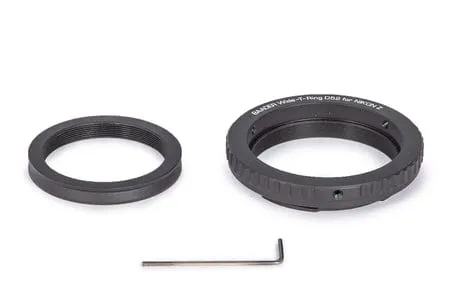

- Telescope side: S52 dovetail clamp incl. S52/T-2 internal thread with 0.75mm pitch
Specifications
| Manufacturer | Baader Planetarium |
|---|---|
| SKU (#) | 2408335 |
| EAN Code | 4047825041029 |
| Optical length (mm) | 8,3 |
| Camera Adaptable | Nikon Z Bajonett |
| Inner Diameter / Clear Aperture (mm) | 41mm (T-2) / 49,3mm |
| Outer Diameter | 66.5mm |
| Inner Connection (lens sided) | S52, T-2 (M42 x 0,75) |
| Outer Connection (eyepiece/-camera-sided) | Bayonet |
| Compatible Brands | Astro T-2, Baader Planetarium, Other |
| Type of Adapter | Camera Adapter |
